MILLING SHOES

TECHNICAL SUMMARY

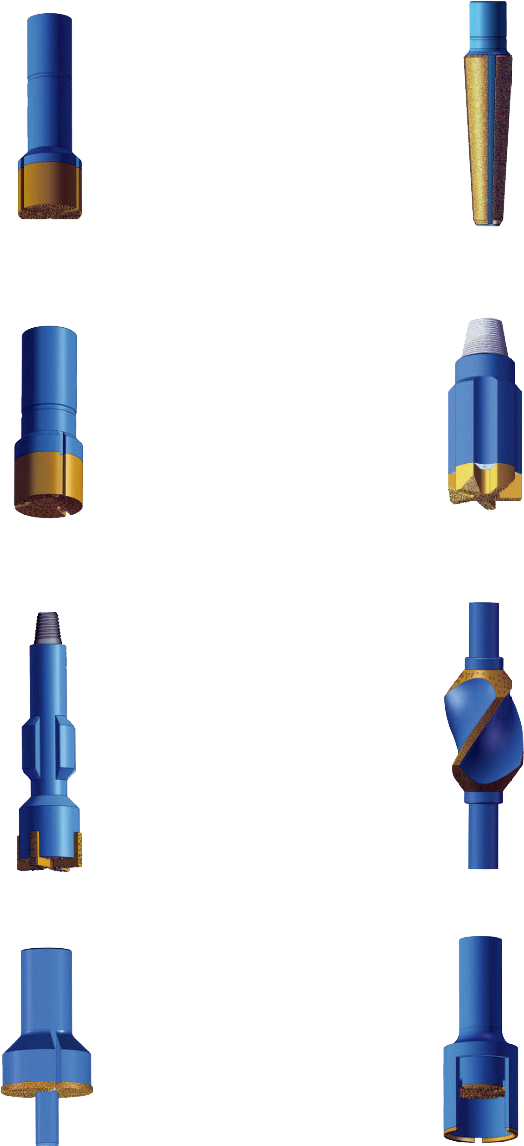

According to the different shapes, milling shoes can be divided into: pilot type, econo type, flat bottom junk type, concave type, taper type, string type, etc.

The surface of milling shoes is welded with granular wear-resistant materials with self sharpening effect, which are used to grind down objects such as bolts, nuts, teeth, slip teeth, deep well pump accessories, etc. Here is the information of some of the most commonly used milling shoes.

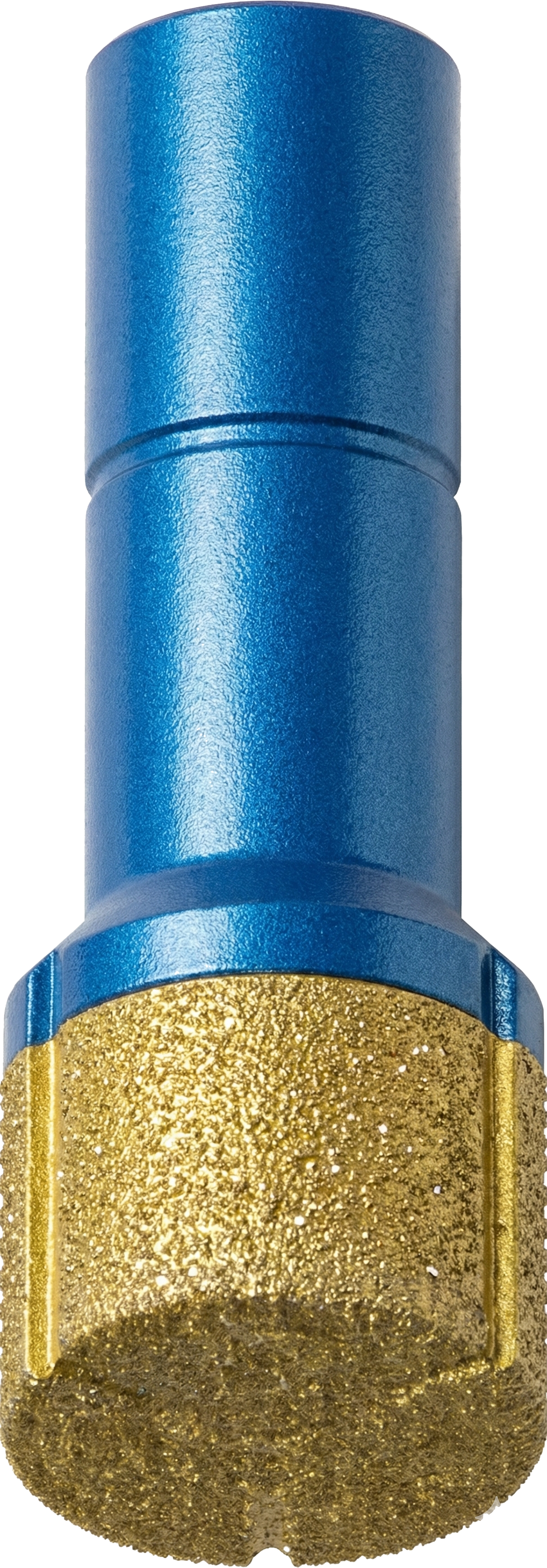

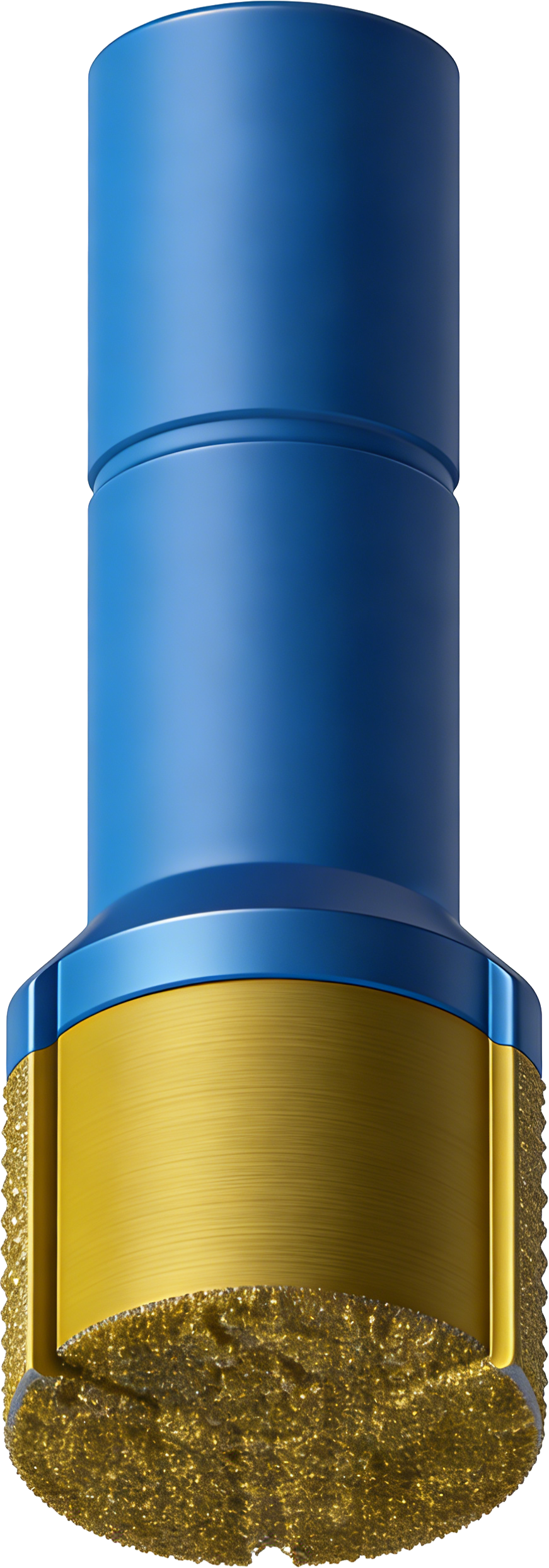

▪️Flat bottom and concave junk mill

The flat bottom and concave junk mill milling the fishes with the effect of drilling pressure by the YD alloy and anti-abrasive material on its bottom surface. The junk was carried out of well by the drilling fluid.

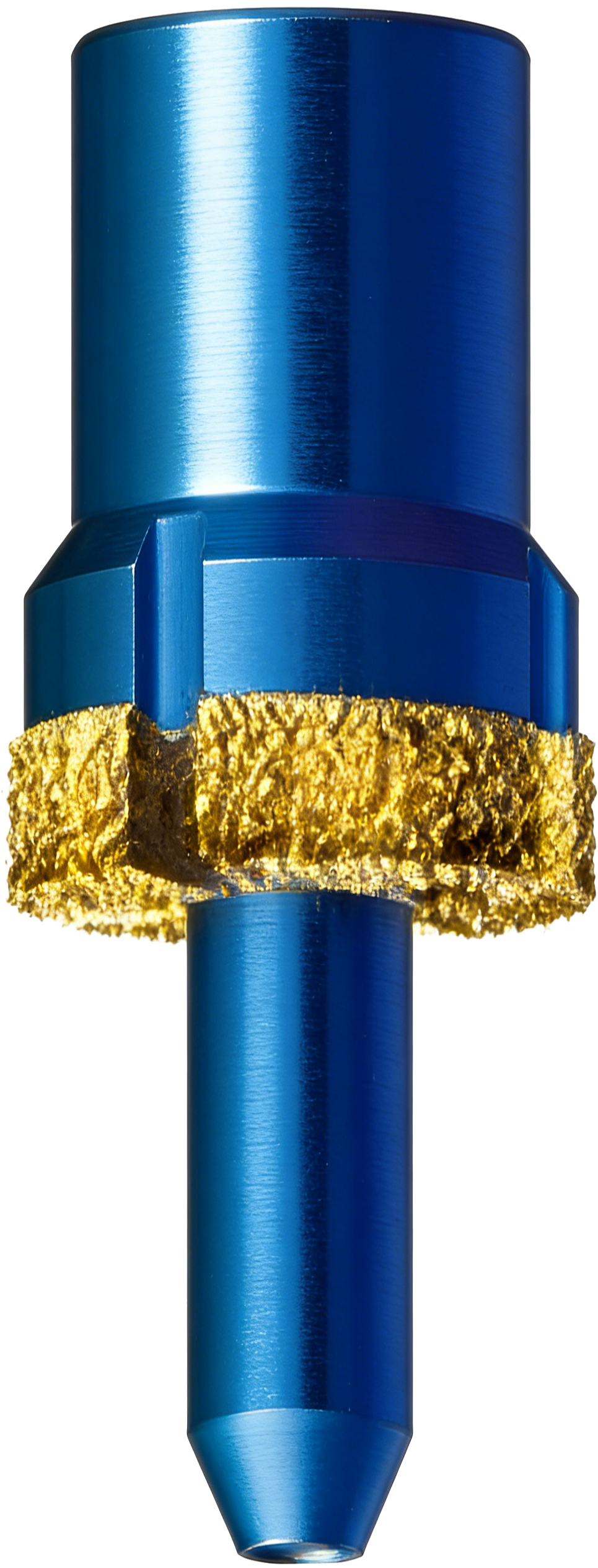

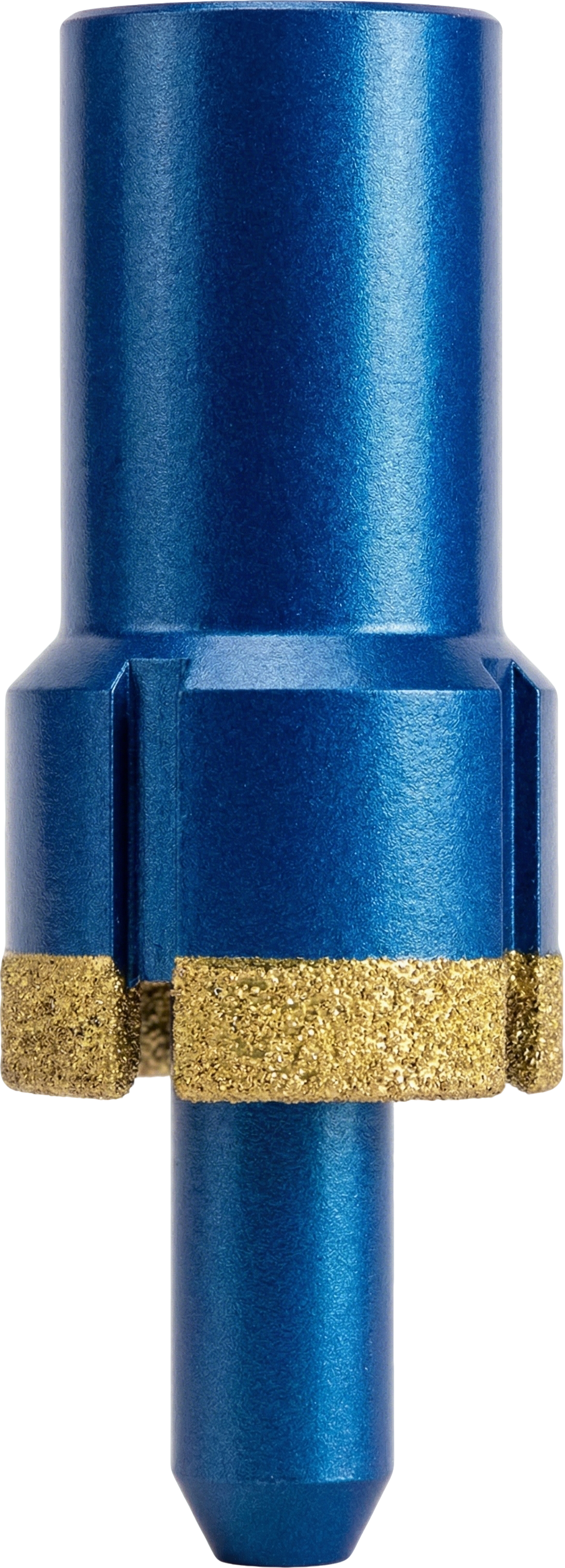

▪️Pilot mill

The pilot mill is used to mill the fishes which have inner bore instability and shake in the well, such as drill pipe, drill collar, tubing, etc.
The pilot mill is made up of mill shoe body and pilot cone, as the following picture. The upper part of the mill shoe body is inner thread, the lower part is cylinder which diameter is bigger. Welding YD alloy and anti-abrasive material on the back plane of pilot cone and mill shoe body. The pilot cone has the effect of leading and fixing the top of the fish. And there are 2-4 water crossing grooves on the back plane of the mill shoe body to make sure it can circulate unblocked.
The pilot mill shoes locate the fish by the cone, which is entered into the fish, and then rotate with the drilling tool, the mill shoes welded with YD alloy grind the fish.

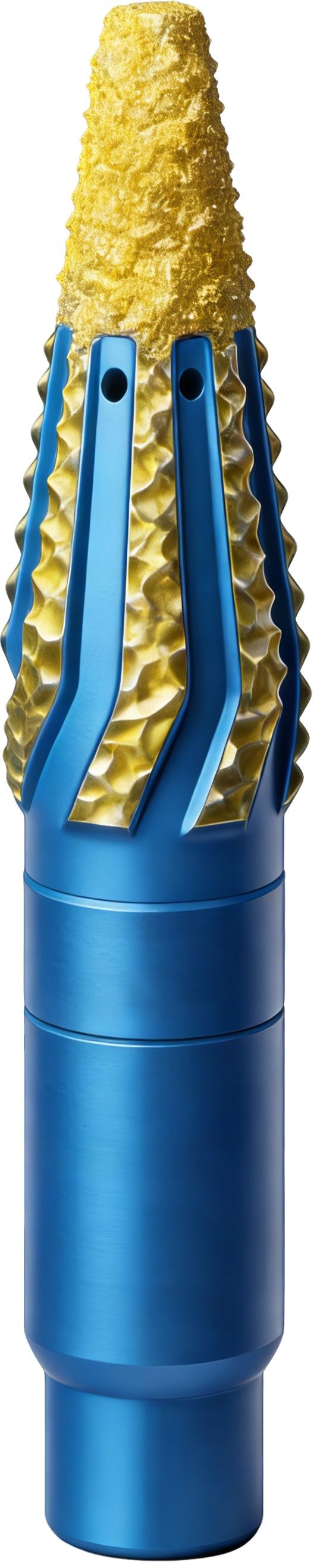

▪️Taper mill

The taper mill is mainly used for restoring the deformational fish’s top or restoring the crimping and burrs during drilling and clean the mineral crystallization and other hard stuff on the well to resume bore size. The taper mill uses its alloy to mill the crystallization and other impurities on the inner wall of the casing. The cylindrical part has the effect of centralizing, the junk is carried to the ground by flushing fluid.

SPECIFICATION3: PILOT MILL

Model	OD mm(inch)	Hole Size mm(inch)	Conn.
LMX251	251(9 7/8)	273.0 ～ 295.3(10 3/4 ～ 11 5/8)	6 5/8REG
LMX216	215.9(8 1/2)	244.5 ～ 269.9(9 5/8 ～ 10 5/8)	4 1/2REG
LMX152	152(6)	168.0 ～ 187.3(6 5/8 ～ 7 3/8)	3 1/2REG
LMX143	143(5 5/8)	155.6 ～ 165.1(6 1/8 ～ 6 1/2)	2 7/8REG
LMX121	1 2 1 ( 4 3 / 4 )	130.0～ 139.7(5 1/8～ 5 1/2)	2 7/8REG
LMX98	98(3 7/8)	107.9 ～ 114.3(4 1/4 ～ 4 1/2)	2 3/8REG

RELEASING SPEAR

RELEASING AND CIRCULATING OVERSHOT

DIE COLLAR

TAPER TAP

MILLING SHOES

REVERSE CIRCULATION JUNK BASKET

FLAT BOTTOM JUNK MILL

TAPER MILL

CONCAVE MILL

ECONO MILL

BLADED JUNK MILL

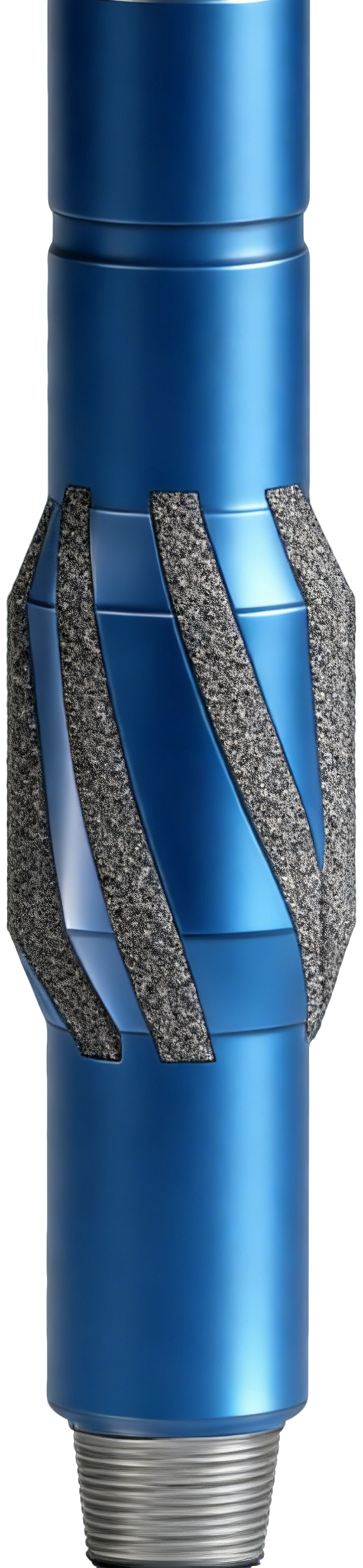

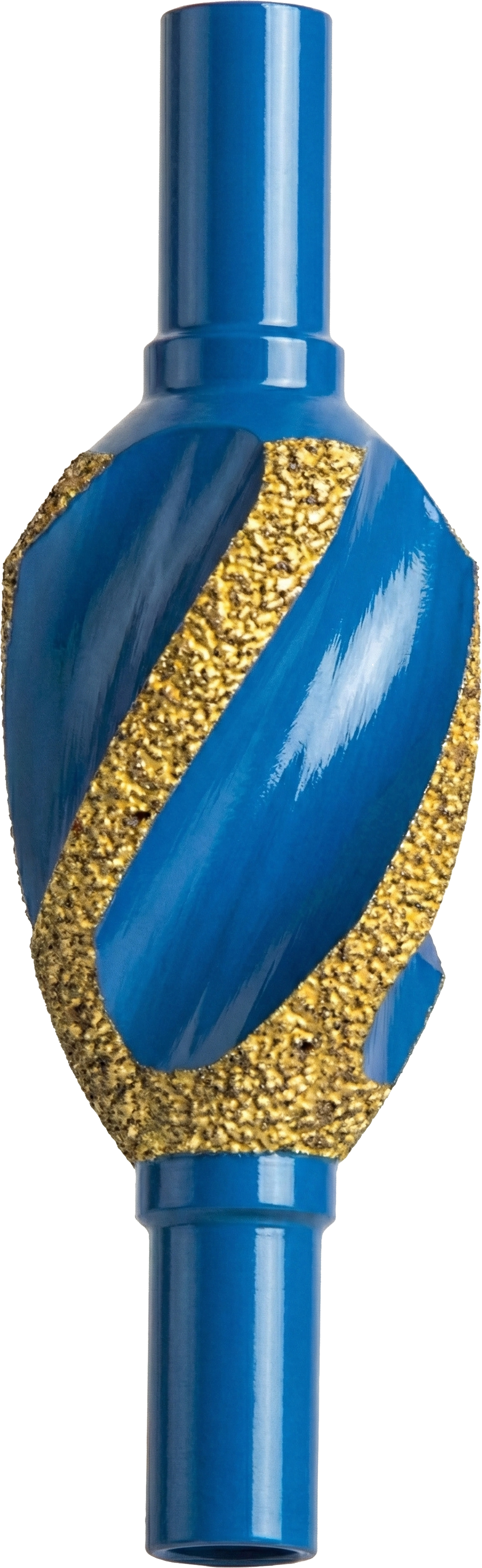

STRING MILL

PILOT MILL

SKIRTED JUNK MILL

SPECIFICATION1: FLAT BOTTOM JUNK MILL

Model	OD mm(inch)	Conn.	OAL mm(inch)
PMX105	105(4 1/8)	NC23	380(15)
PMX114	114(4 1/2)	NC26	390(15 3/8)
PMX140	140(5 1/2)	3 1/2REG	380(15)
PMX195	195(7 11/16)	4 1/2REG	400(15 3/4)
PMX215	215(8 1/2)	4 1/2REG	400(15 3/4)
PMX311	311(12 1/4)	6 5/8REG	440(17 5/16)
PMX406	406(16)	7 5/8REG	500(19 11/16)

SPECIFICATION2: CONCAVE JUNK MILL

Model	OD mm(inch)	OAL mm(inch)	Conn.
AMX260	260(10 1/4)	400(15 3/4)	6 5/8REG
WG311	311(12 1/4)	440(17 21/64)	6 5/8REG
WG216	215.9(8 1/2)	400(15 3/4)	NC50
AMX190	190(7 1/2)	400(15 3/4)	4 1/2REG

SPECIFICATION4: TAPER MILL

Model	OD mm(inch)	Conn.	OAL mm(inch)
ZMX76	76(3)	2 3/8REG	380(14 31/32)
ZMX102	102(4)	NC26	620(24 13/32)
ZMX146	146(5 3/4)	NC38	700(27 9/16)
ZMX206	206(8 1/8)	NC38	700(27 9/16)
