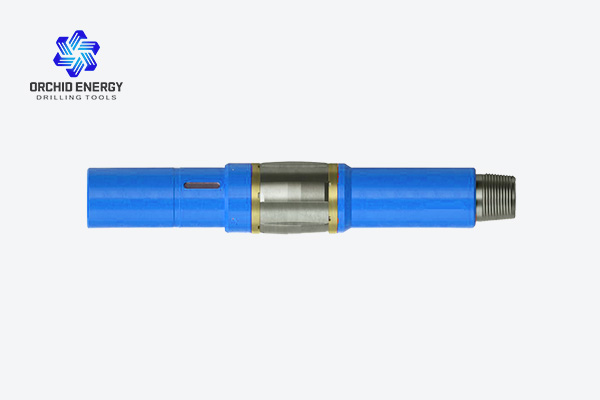

Torque Reduction Sub

넳 넲

Torque reduction sub is to reduce the excessive torque generated by drilling in short radius horizontal section and large angle well section. According to its structural components, the torque reduction sub is divided into: mandrel body, upper and lower sliding bearings, slip spiral inner sleeve, straight rib outer sleeve, stop collar etc.

HOME ꁇ PRODUCTS ꁇ Product Details

Email for quotation

Share: linkedin Facebook 0
Torque reduction sub is mainly connected between short radius horizontal section and large angle well section, propose to connect a torque reduction sub by every 60ft, it can reduce 25%-35% torque after using this tool, it’s slip spiral inner sleeve, straight rib outer sleeve and body mandrel are relatively in non-rotating condition.

Advantages

An isolation point supported by the straight rib outer sleeve can be formed between the drill pipe and the casing, which can reduce the torque of the rotary table;

It can effectively prevent the direct contact between the drill pipe and the casing, reduce the wear of the drill pipe and the casing, and protect the casing;

Reduce the frictional contact force between the drill pipe and the casing, and reduce the resistance of the drill;

Greatly improve the service life of drill Pipe.

Features & Benefits:

Reduce drill string wear and fatigue;

Minimizes torque and drag;

Minimizes casing wear;

Increase ROP;

Dampens vibration;

Enhances drilling efficiency.
