During drilling operation, serious wear often takes place between drill pipes and casings. The wear sub is typically placed above the drill bit. It is designed to withstand the abrasive forces encountered during drilling, such as formations with high rock hardness or high levels of drill bit vibration.

HOME ꁇ PRODUCTS ꁇ Product Details

Email for quotation

Share: linkedin Facebook 0

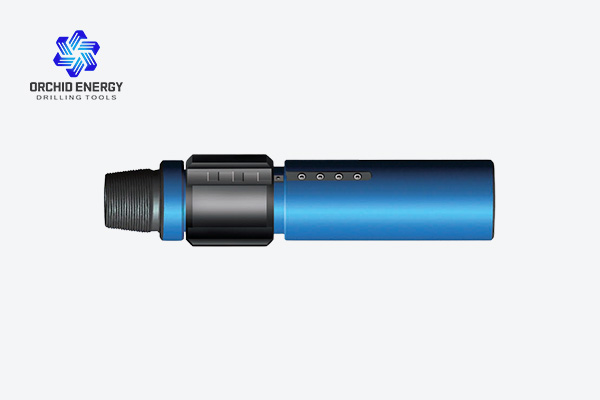

Wear Sub is used to avoid the wear between drill pipes, tool joints and casings. With features such as compact structure, easy operating, wear sub can prolong the service life of drill pipe and casing, reduce the vibration and trembling of drilling tools, limit the contact friction between metals to metals.

Orchid Energy wear subs consist of a highly wear rubber sleeve, a metal stiffening liner and a sub body. The rubber sleeve is installed in the middle of sub body and some clearance is given to allow sleeve to rotate freely. The rubber sleeves are made of rubber mixtures with good wear resistance.

During drilling operation, the rubber sleeve and sub body can make a relative rotation, rubber sleeve O.D is larger than drill pipe tool joint O.D, so the tool joint and drill pipes can not contact with casing. The rubber sleeve on saver sub will firstly contact with casing. When friction between rubber sleeve and casing takes place, wearing to casing can be reduced due to the rubber sleeve features such as wear and soft, at the same time, consumption to tool joints of drill pipes and drill string tools will be decreased.

Specification: Wear Sub.pdf
