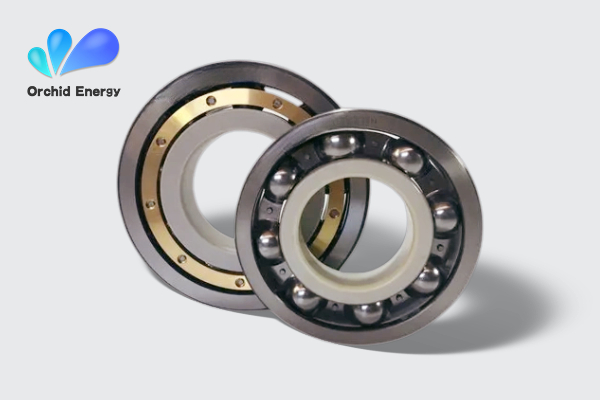

Deep groove ball bearings are the most common type of rolling bearings. The basic deep groove ball bearing is composed of an outer ring, an inner ring, a group of steel balls and a group of cages. Its structure is simple and easy to use, it is the most common and widely used bearing.

HOME ꁇ PRODUCTS ꁇ Product Details

Email for quotation

Share: linkedin Facebook 0

Deep groove ball bearing is a kind of non separable bearing, which has simple structure and is widely used. In addition to the basic type, deep groove ball bearing also has various variant structures, such as: deep groove ball bearing with dust cover, deep groove ball bearing with rubber sealing ring, deep groove ball bearing with stop groove, full groove ball bearing with large load capacity with ball notch.

Deep groove ball bearings mainly bear radial load, and can also bear radial load and axial load at the same time. It is suitable for use under the condition of high-speed operation. When it only bears radial load, the contact angle is zero. When the deep groove ball bearing has a large radial clearance, it has the performance of an angular contact bearing and can bear a large axial load. The friction coefficient of deep groove ball bearings is very small, and the limit speed is also very high, but it is not suitable to bear heavy loads. The axial load capacity increases when a larger radial clearance is selected, and the contact angle is zero when subjected to pure radial forces. When an axial force acts, the contact angle is greater than zero.
끸

Submit
Spherical Ball Bearing

The spherical ball bearing has two rows of balls, the outer ring has a common concave spherical raceway, and the center of curvature is the same as the bearing center. Even if the inner ring, steel ball and cage are inclined to the outer ring, they can rotate.

¥ 0.00

Details

Thrust Ball Bearing

Thrust ball bearing is composed of shaft ring, seat ring, steel ball and cage. The ferrule matching with shaft is called shaft ring, and the ferrule matching with shell is called seat ring. The bearing with spherical mounting surface of seat ring has centering performance, which can reduce the impact of installation error.

¥ 0.00

Details

Spherical Roller Bearing

Spherical roller bearing consists of a outer ring with a spherical raceway, a double raceway inner ring, one or two cages and a group of spherical rollers. Since the center of the spherical raceway of the outer ring is the same as the bearing center, it can automatically adjust the inclination or deflection of the shaft.

¥ 0.00

Details

Angular Contact Ball Bearing

Angular contact ball bearings are suitable for occasions that can bear both radial and axial loads. It can also be used in the occasion of bearing pure axial load and can work at higher speed. The ability of the axial load that bearing bears varies with the size of the contact angle.

¥ 0.00

Details
