OCTGJoint

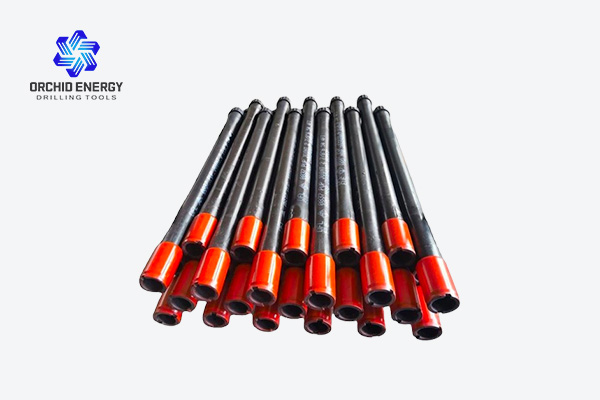

OCTG Pup Joint for Casing & Tubing
The OCTG pup joint is a pipe that can be cut to different lengths to meet the desired value. Orchid Energy Co could provide API standard casing and tubing pup joints which are manufactured according to API Spec 5CT with different grade of seamless tubing according to the clients requirement.
-
1. Characteristic
-
Standard: API 5CT/ISO11960/GOST;
- Grade: H40, J55, K55, N80-1, N80-Q, L80-1,L80-9Cr, L80-13Cr, P110, C95,Q125;
- Length: 2ft,3ft,4ft,6ft,8ft,10ft,12ft(with other length available upon request);
- OD of Tubing joint: from 2 3/8” to 4 1/2”.Pipe End: EUE/NUE;
- OD of Casing joint: from 4 1/2” to 20”. Threads: BTC,LTC,STC;
2. Performance
- The joint body exhibits good mechanical strength and overall performance;
- The threads on joint are cut on the CNC machine which ensures the high precision of the threads and enhance the life;
- Phosphate coating or copper plating gives the joint good wear resistance;
-
-
-
-
OCTG Couplings for Casing & Tubing
Couplings are short lengths of pipe used to connect with tubing or casing. They come with painted color codes on their external surface to indicate their steel grades. Couplings are manufactured according to API 5CT and 5B specifications. We could manufacture a wide variety of API prime OCTG Tubing and Casing Couplings.¥ 0.00Details
-
Tubing-OCTG
Tubing is pipe used for the transportation of crude oil and natural gas from an oil or gas layer to the surface after drilling completed. Tubing-OCTG is made to withstand the pressure generated from the extraction process. Tubing is manufactured in the same way as casing, except the "upsetting" process is applied to thicken the pipes.¥ 0.00Details
-
Casing-OCTG
Casing is a kind of large diameter pipe that is assembled and inserted into a recently drilled section of a borehole and typically held into place with cement. Orchid Energy can provide various seamless casing from 4-1/2”-20” in grade H40, J55, K55, N80, L80, C95, P110 etc.¥ 0.00Details
-
Non-Magnetic Drill Collar (NMDC)
Non-Magnetic Drill Collar (NMDC) is specialized tools extensively employed in the oil and gas industry to facilitate efficient drilling operations while minimizing magnetic interference. Orchid Energy can provide slick/spiral/flex/pony types of non-magnetic drill collar.¥ 0.00Details
-
