REVERSE CIRCULATION JUNK BASKET

TECHNICAL SUMMARY

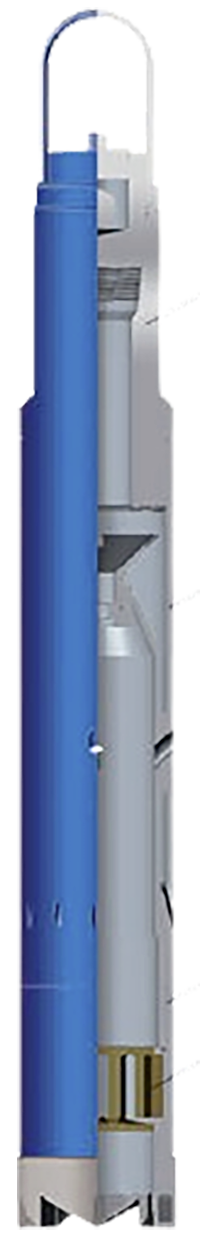

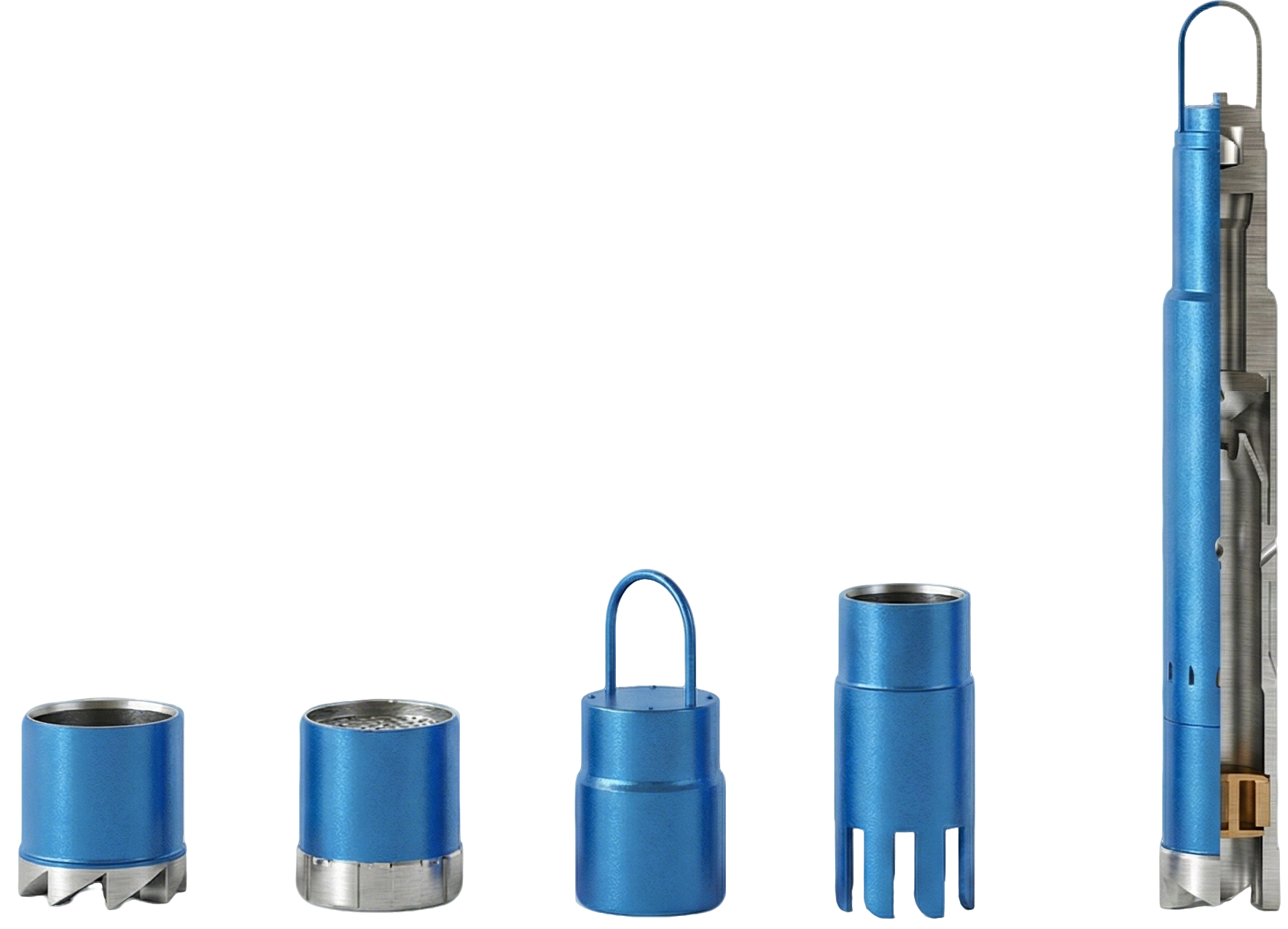

Reverse Circulation Junk Basket, which is also known as RCJB, is designed to remove all types of small junk objects from the hole. The tool’s main feature eliminates pulling a wet string. Even when the tool is fitted with a magnet insert, reverse circulation is maintained.
Reverse circulation junk basket is made up to the bottom of the fishing string and lowered to a point within several feet from the bottom of the hole. Begin circulation to wash the hole. Stop circulation and drop the steel ball. (When the steel ball is dropped into the valve seat, circulation fluid travels outward and downward through the inner passage of the barrel and out through the vents in the lower end. The fluid is then deflected to the center of the tool and up through the return holes in the upper end of the barrel. This reverse fluid circulation carries the junk into the barrel above the junk catcher.) Begin circulation again, slowly rotating while lowering the tool until a 10-inch core has been cut. Stop rotation and circulation and pull the tool from the hole.

SPECIFICATION

Model	Barrel O.D. (mm)	Mill Shoe O.D. (mm)	Fish Max. O.D. (mm)	Ball Dia. (mm)	Thread Conn.	Hole Size (mm)
LL-381	381	386	282	55	7 5/8 REG	406-444
LL-318	318	324	248	55	6 5/8 REG	349-406
LL-F286	286	298	217	55	6 5/8 REG	320-346
LL-F279	279	286	211	55	6 5/8 REG	300-341
LL-F254	254	260	195	55	6 5/8 REG	275-295
LL-F245	245	252	192	50	NC50	275-295
LL-F232	232	239	179	50	NC50	255-270
LL-F206	206	210	159	45	NC50	223-241
LL-F195	195	202	149	42	NC50	215-241
LL-F178	178	184	130	42	NC50	198-209
LL-F168	168	174	123	42	NC50	190-209
LL-F130	130	136	94	40	NC31	155-165
LL-F121	121	126	90	35	NC31	142-152
LL-F114	114	121	82	35	NC31	130-140
LL-F97	97	103	62	30	NC26	117-127
LL-F89	89	94	55	30	NC26	108-114
